The Normal ECG

Standard Calibration

A standard ECG is recorded at 25mm/sec and with a frequency cut off of no lower than 150Hz in adults, and 250Hz in children.

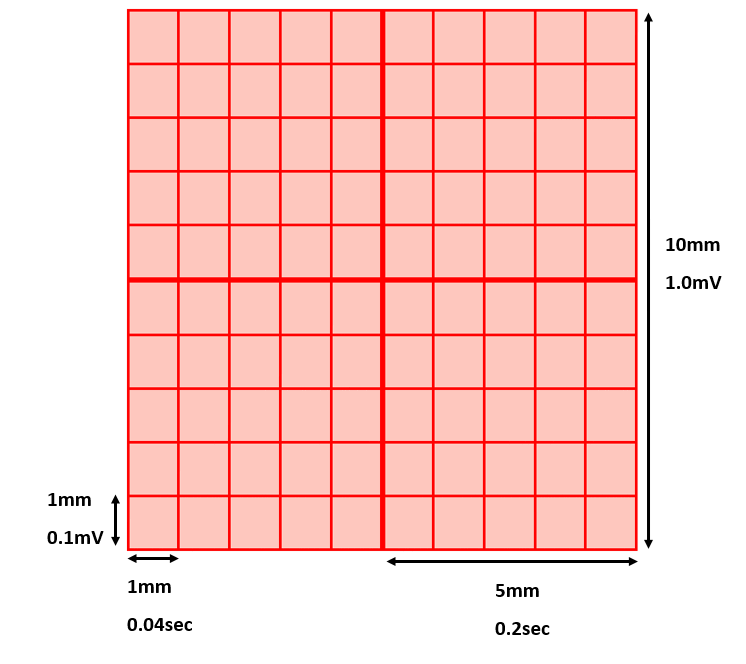

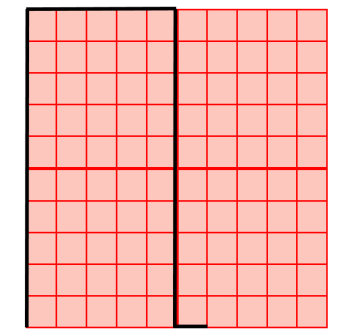

On the standard ECG paper, with standard calibration, the squares represent:

Standard measurements The standard calibration signal will look like this:

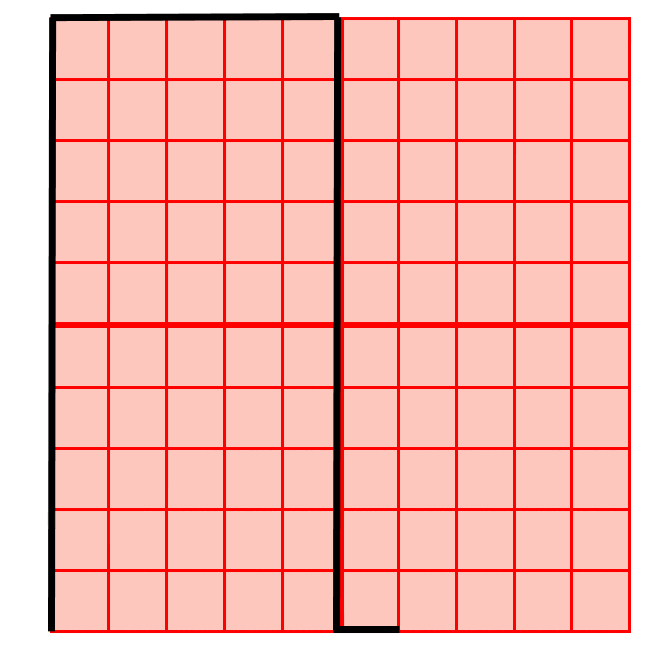

CalibSigStandard

This will be present at the beginning or end of all four rows of the trace, and shows:

  • Speed = 25mm/sec
  • VLimb Leads = 10mm/mV
  • VChest Leads = 10mm/mV

Alterations to calibration can be made for a number of reasons.

I personally have gained traces with overlapping QRS complexes in the Precordial leads. In order to analyse the ECG, reducing the voltage in the overlapping leads was necessary. Halving the voltage in leads V1- V6 will show:

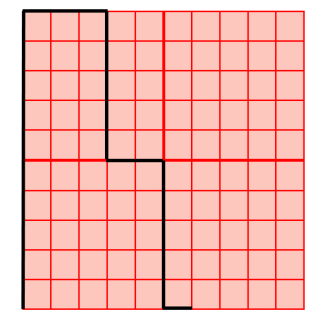

0.5Precordial

This implies the VChest Leads = 5mm/mV. Halving all leads would remove the “top step” on the signal, creating a level one at 5mm.

Waves

Screenshot (88)

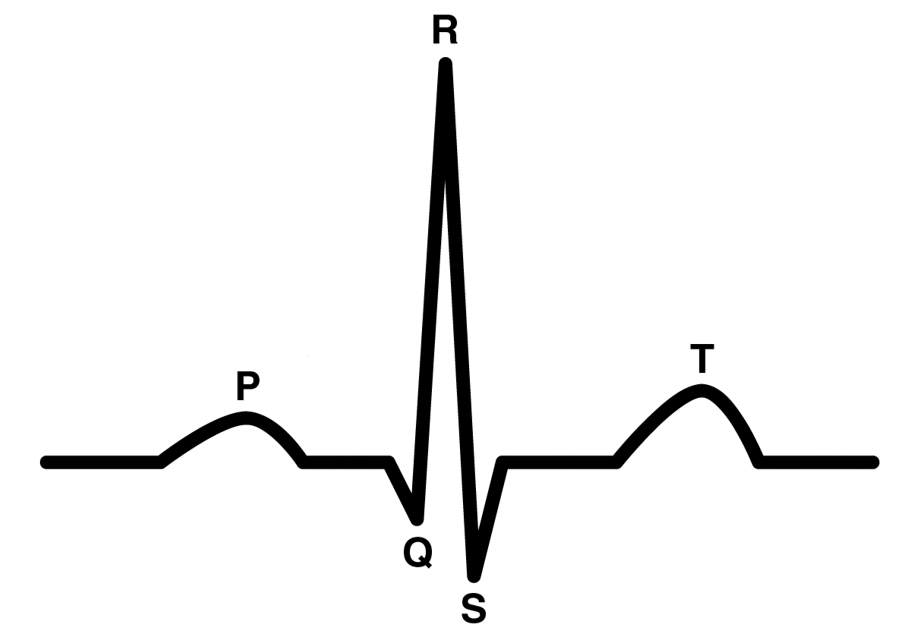

A regular waveform looks something like the above. It is important to note the existence of the U wave (not present in this image), which is sometimes seen after the T wave.

Connecting these individual waves further, are the segments and intervals. The complete PQRST(U) makes up a depolarisation-repolarisation cycle:

  • P Wave
    • Spread of electrical impulse across atria from SA node
    • Atrial depolarisation
  • QRS Complex
    • Spread of electrical impulse through the ventricles
    • Ventricular depolarisation
  • T Wave
    • Ventricular repolarisation
  • PR Interval
    • Electrical impulse spreads over atrium, through AV node and Bundle of His
  • ST Segment
    • Isoelectric point. No change in electrical activity
  • QT Interval
    • Depolarisation and repolarisation of the ventricles
  • U Wave
    • Hypothesised to be Purkinje repolarisation

Heart Rate

  • Count the number of small squares between two R waves
  • Divide by 1500

Worked example

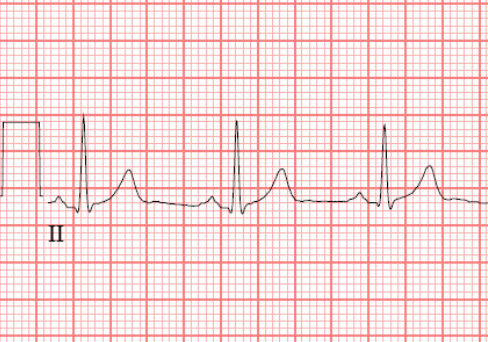

NormalECGClose

  • 20 small squares between first and second R waves
  • 1500/20 = 75
  • Heart rate = 75bpm

QT Correction

A corrected QT interval estimates the QT at a heart rate of 60bpm to allow comparison of values over different heart rates

There are a number of ways to calculate the QTc depending on the actual HR of the patient:

  • Bazett’s Formula (HR 60-100bpm)

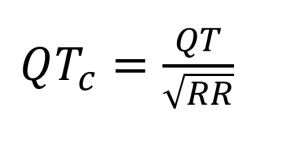

Bazett

  • Federicia’s Formula (HR <60 & >100)

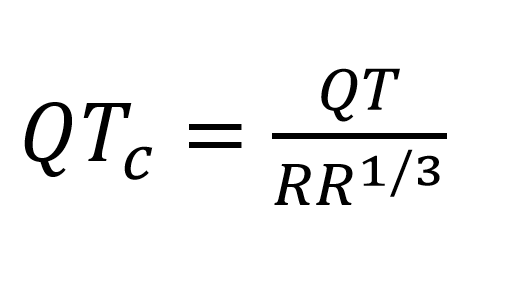

Screenshot (90)

The Normal ECG

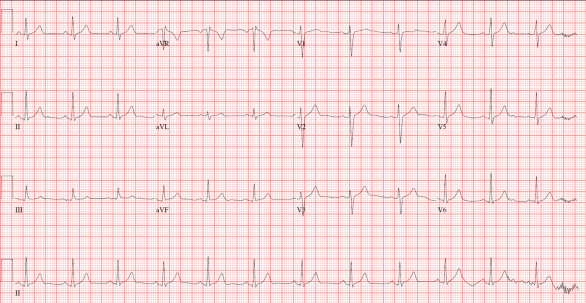

NormalECG

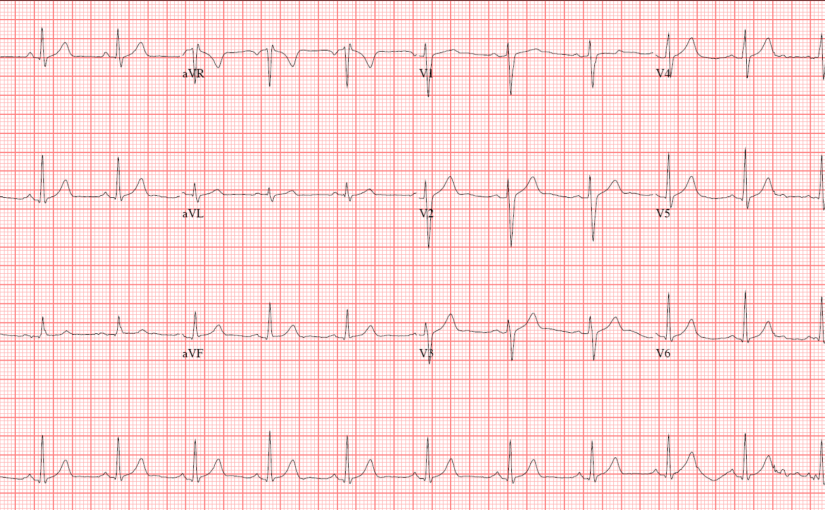

The normal ECG will display these characteristics:

  • Rhythm
    • <10% variation in RR intervals)
  • Rate
    • 60- 99bpm
  • Cardiac Axis
    • -30° – 90°
  • P Waves
    • 0.2-0.3mV
    • 0.06 – 0.12s
      • Upright in I, II, aVF, V2- V6
      • Inverted in aVR
      • Varies in III, aVLSinus origin
  • PR Interval
    • 0.12 – 0.2s
  • Q Waves
    • Small in I, II, aVL, V5, V6
  • QRS Complex
    • <0.12s
  • ST Segment
    • Isoelectric
  • T Waves
    • <2/3 height of preceding R wave
      • 0.5mm in I, II, III
      • <10mm in V1 – V6
    • Same direction as preceding R wave
  • U Waves
    • <25% of T wave
    • Same direction as T wave
  • QTc
    • <440ms in males
    • <460ms in females

Ref:

www.lifeinthefastlane.com

Andrade, J. ECG Guide by QxMD

Luthra, A. (2007) ECG Made Easy. Third edition. Tunbridge Wells: Anshan

Heart
